HYHC-65 Honeycomb Activated Carbon

different CPSI honeycomb activated carbon

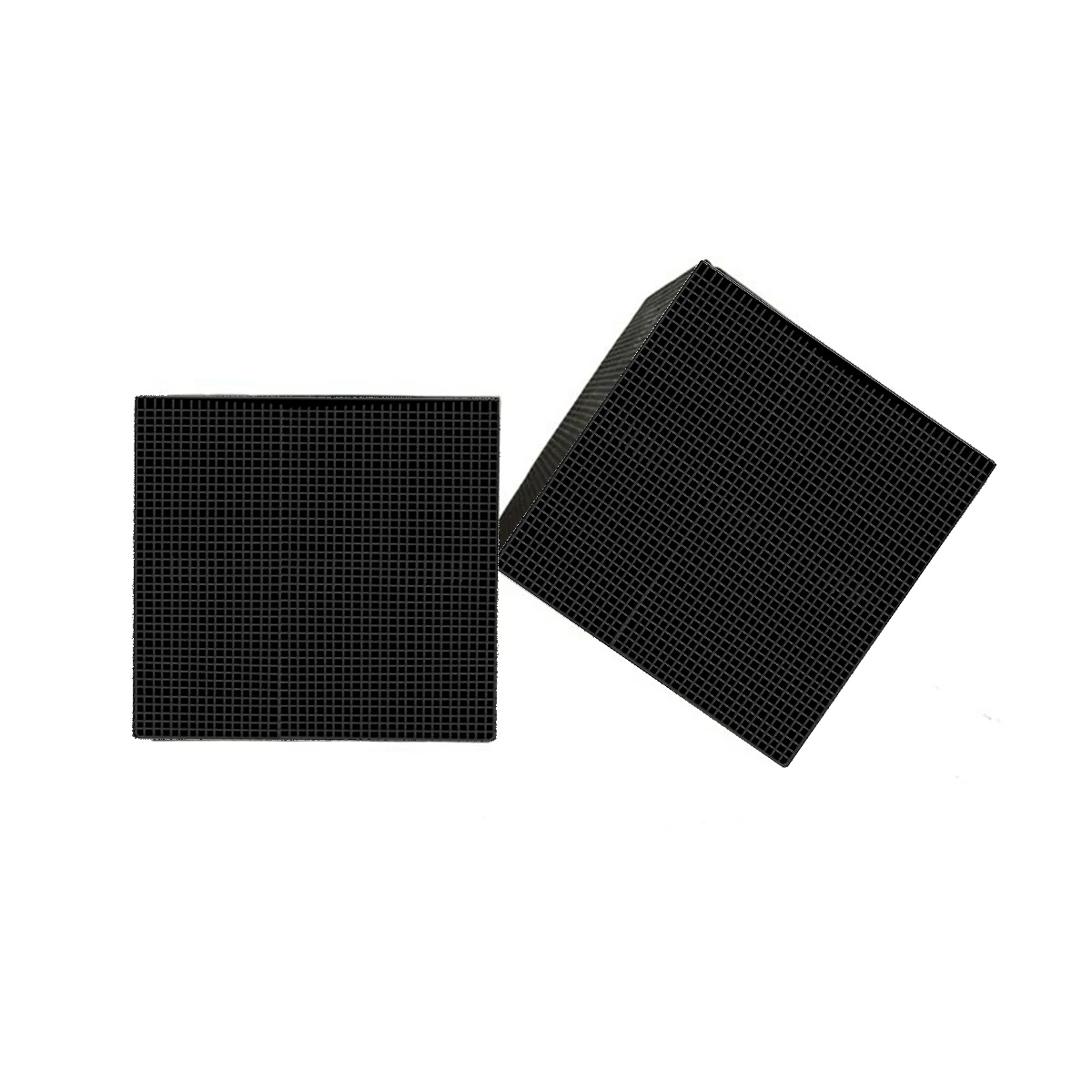

different shapes honeycomb activated carbon

HANYAN two-step activation honeycomb activated carbon is a new popular kind of activated carbon, which widely used in various VOCs purification systems with low concentration and large air volume. HYHC-65 is the high effiency honeycomb activated carbon with excellent adsorption capacity.

Additional information

Attribute	No water proof, Water proof
Dimension	100100100(±3)mm
Hole Size	100PSI (25/50/150/200 is available)
CTC	60-70
Iodine Value	≥600mg/g
VOCs Adsorption	≈120kg/m³
Adsorption Substance	Toluene, xylene, non-methane total hydrocarbons, etc. Painting exhaust gas, VOCs

Description

Honeycomb activated carbon is a special form of activated carbon, is popular and widely used in waste gas treatment and air purification filter. HANYAN honeycomb activated carbon uses qualified mixed activated carbon powder as raw material, processing formed after high temperature activation. Different from traditional production process, HANYAN use self-developed formula, patented two-step activation technology, to achieve larger VOCs adsorption volume and high desorption efficiency.

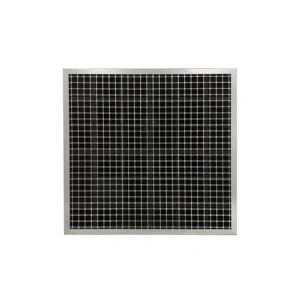

It has relatively large contact area, developed microporous structure, high adsorption capacity, the biggest characteristic of it is small wind resistance. It is usually used for exhausting gas in factories, deodorization of spray-paint room and other areas of the environmental protection.

At present, HANYAN owns 2 invention patents and 2 high-tech products of honeycomb activated carbon. So far, HANYAN honeycomb activated carbon specialized for VOCs treatment has won the honor of Guangdong Province High-tech product.

Detailed Specifications

Model	HYHC-65	Brand	HANYAN
Dimension	100100100(±3)mm	Attribute	Water proof, No water proof
CPSI	100 (25/50/150/200 is available)	Filling density	300±50kg/m³
Carbon tetrachloride adsorption/ CTC	60-70%	Iodine value	≥600mg/g
Specific surface area	≥750m²/g	VOCs adsorption volume	≈120kg/m³
Wall thickness	0.5-1mm	Compressive strength	Positive pressure≥0.9Mpa; Side pressure≥0.3Mpa
Pressure drop	≤490Pa (Carbon bed thickness 600mm, Wind speed 0.8m/s)	Adsorption substance	Toluene, xylene, non-methane total hydrocarbons, etc. Painting exhaust gas, VOCs

Application

Industry: coating, auto parts, pharmacy, petrochemical, furniture, PE materials, chemical engineering, etc.
Air Volume: 1,000 - 100,000 Nm³/h (Large Volume)
Concentration: low concentration
Component: relatively single component
Equipment: widely used in catalytic combustion equipment as adsorbent.
