Standard size: 100x100x100mm(±3), customized size, shape and special application used are available; and waterproof and non-waterproof types are also offered.
Guangdong Hanyan Activated Carbon Technology Co., Ltd. known as “HANYAN”, was established in 2010 and is one of China’s largest manufacturers of activated carbon. Our company operates two plants dedicated to producing honeycomb activated carbon with a CTC≥85%; so this manufacturing process technology has been rated as “international advanced level”.
Adsorption Testing Machine
| Model | HYHC-55 | HYHC-65 | HYHC-75 |
| Brand | HANYAN | ||
| Dimension (mm) | 100x100x100mm(±3), other sizes available | ||
| CPSI | 100 (25/50/150/200 is available) | ||
| Attribute | Water proof, No water proof | ||
| Carbon tetrachloride adsorption/ CTC (%) | 50-60 | 60-70 | 70-80 |
| Iodine value (mg/g) | ≥650 | ≥800 | ≥800 |
| Filling density (kg/m³) | 300±50 | 250±50 | 250±50 |
| Specific surface area (m²/g) | ≥650 | ≥800 | ≥1000 |
| VOCs adsorption volume (kg/m³) | ≈80 | ≈120 | ≈150 |
| Static/dynamic absorption of benzene (%) | Static≥45, Dynamic≥35 | Static≥55, Dynamic≥45 | Static≥65, Dynamic≥55 |
| Desorption temperature(°C) | 80-100 | ||
| Adsorption substance | Toluene, xylene, non-methane total hydrocarbons, etc. Painting exhaust gas, VOCs | ||
| Compressive strength (Mpa) | Positive pressure≥1.2Mpa, side pressure≥0.5Mpa | ||
| Pressure drop (Pa) | ≤490Pa, (Carbon bed thickness 600mm, Wind speed 0.8m/s) | ||
| Wall thickness (mm) | 0.5-1 | ||
| Use temperature(℃） | ≤120 | ||
| Ignition point (°C) | ≥400 | ||
| Remarks | Impregnated kind is available for special gas treatment, such as H2S, NH3, HCHO, O₃, etc. | ||
The normal size is 100*100*100mm, small sizes honeycomb activated carbon are available. Size within 100*100mm is suggested, welcome to provide size requirements.
No matter square, round, rectangle or hexagon, you can find here. Pore size such as 100/150/200/300/400 CPSI are acceptable.
Honeycomb activated carbon can be impregnated with required substance like KI, KOH, NaOH, and etc. Technical guide can be offered according to your detailed requirments.
HANYAN High CTC and High iodine value honeycomb activated carbon is a new popular kind of activated carbon, produced with unique anti-counterfeiting and two-step activation tech-nology, which widely used in various VOCs purification systems with low concentration andlarge air volume.
Honeycomb activated carbon is characterized by low air resistance and strong adsorption during filtration. It is widely used in various industries for low concentration and high air volume gas treatment, as well as water treatment (such as aquarium purification).

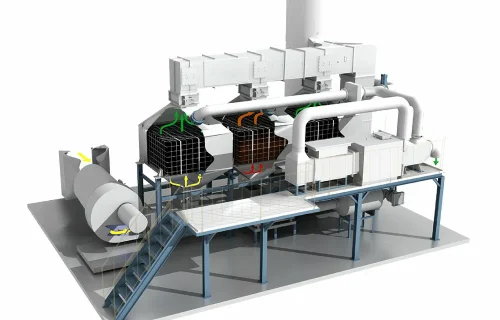

Industrial gas purification (such as CO2, N2, etc.). Petrochemical industry production, natural gas purification, desulfurization, paint industry, leather factories,…
Used to remove harmful gases in the air, such as volatile organic compounds (VOCs), ammonia and sulfides.

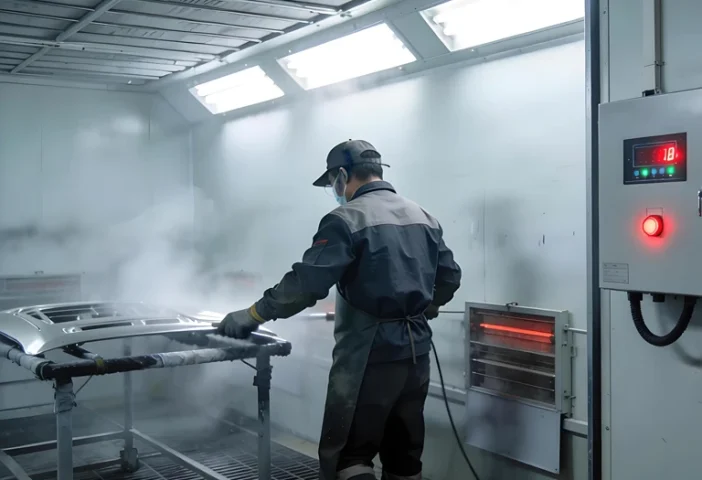

Suitable for indoor air purification filter, restaurant fume exhaust gas treatment filter.
It is suitable for the adsorption and removal of organic matter in water bodies and is used in aquariums, etc.
