Honeycomb Activated Carbon Filter

Solve All Air Quality Problems

HANYAN’s honeycomb activated carbon filter is your excellent gas-phase air filtration solution that will offer energy savings and improved operational performance.

Ask for a quote
Previous
Next
honeycomb activated carbon filter 587x697
customer staff

Hi, We're HANYAN team,
professional AC supplier

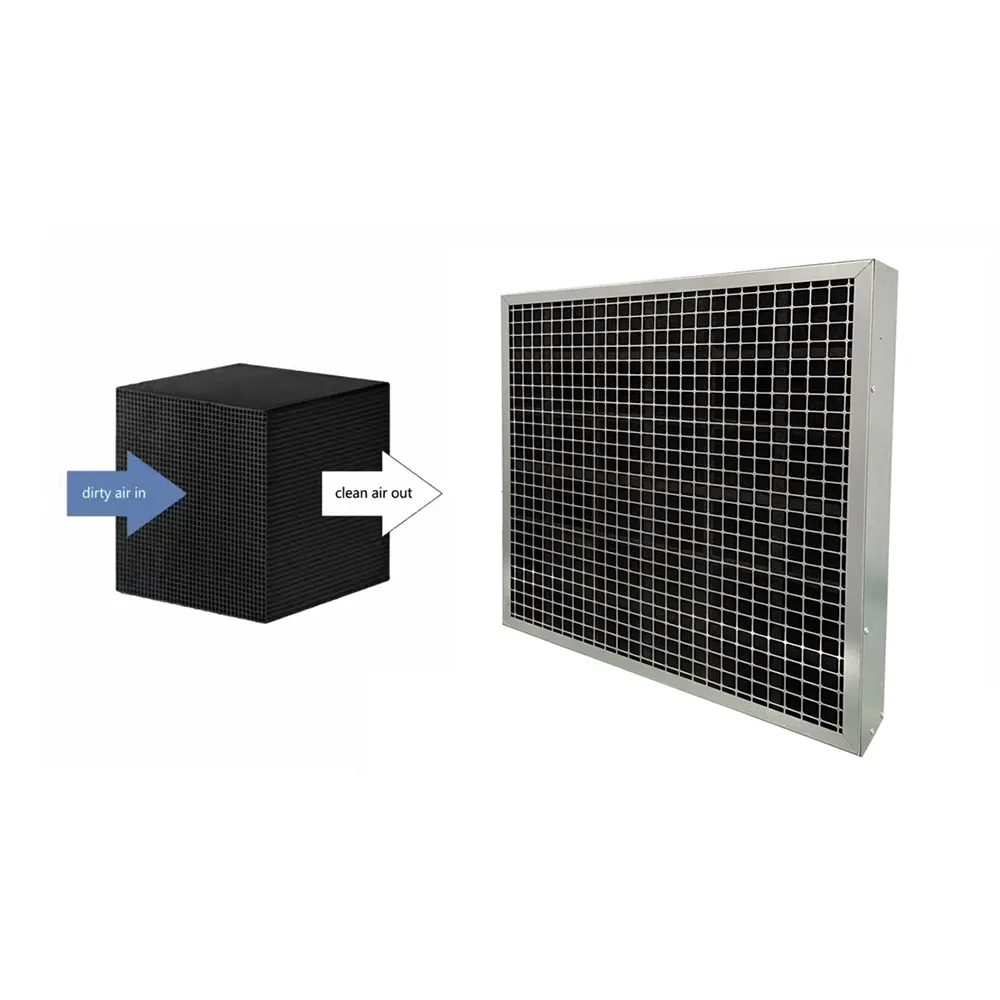

Honeycomb Activated Carbon - GridFilter

HANYAN-GridFilter is a gas -phase air filtration media in the form of an extruded monolithic block consisting of a large number of small and uniform parallel cells or channels. With low pressure drop, large contact area and high adsorption capacity, GridFilter is widely used in the purification system of various acid gas, alkaline gas, indoor air and VOCs substances.

ASK FOR A QUOTE

Where to Used For

#1:

PCBsorb GridFilter

Specially used to remove corrosive gases and acid-containing substances, including hydrogen sulfide, sulfur dioxide, nitrogen, nitrogen oxides, etc.

#2:

ACC GridFilter

Removal of ide-spectrum volatile organic compounds from gaseous pollutants (e.g. odor control, VOCs removal)

#3:

IAQ GridFilter

Effectively remove formaldehyde, ozone, VOCs, hydrogen sulfide and malodorous gases through performance modification

#4:

Amsorb & Clsorb GridFilter

Used to remove ammonia and amine substances and chloride-containing compounds

HANYAN-GridFilter Data Sheet

Model Nominal Size Exact Size GridBlock Density Material Loading Frame Material Airflow Wind Speed Pressure Drop
in mm g/cm3 kg CMH m/s Pa
GF-24242 24*24*4 595*595*95 0.4411 9.8 Galvabized 3400 2.5 146
GF-24242 24*24*2 595*595*45 0.4411 3.9 Galvabized 3400 2.5 73
GF-12244 12*24*4 289*595*95 0.4411 4.9 Galvabized 1700 2.5 146
GF-12242 12*24*2 289*595*45 0.4411 1.9 Galvabized 1700 2.5 73
GF-12124 12*12*4 289*289*95 0.4411 2.0 Galvabized 850 2.5 146
GF-12122 12*12*2 289*289*45 0.4411 1.0 Galvabized 850 2.5 73
GF-20254 20*25*4 495*622*95 0.4411 8.2 Galvabized 3000 2.5 146
GF-20252 20*25*2 495*622*45 0.4411 3.2 Galvabized 3000 2.5 73
GF-20204 20*20*4 495*495*95 0.4411 6.8 Galvabized 2400 2.5 146
GF-20202 20*20*2 495*495*45 0.4411 2.7 Galvabized 2400 2.5 73
GF-16204 16*20*4 394*495*95 0.4411 5.4 Galvabized 1900 2.5 146
GF-16202 16*20*2 394*495*45 0.4411 2.1 Galvabized 1900 2.5 73
Model Exact Size GridBlock Density Material Loading Frame Material Airflow Wind Speed Pressure Drop
mm g/cm3 kg CMH m/s Pa
GF-24242 595*595*95 0.4411 9.8 Galvabized 3400 2.5 146
GF-24242 595*595*45 0.4411 3.9 Galvabized 3400 2.5 73
GF-12244 289*595*95 0.4411 4.9 Galvabized 1700 2.5 146
GF-12242 289*595*45 0.4411 1.9 Galvabized 1700 2.5 73
GF-12124 289*289*95 0.4411 2.0 Galvabized 850 2.5 146
GF-12122 289*289*45 0.4411 1.0 Galvabized 850 2.5 73
GF-20254 495*622*95 0.4411 8.2 Galvabized 3000 2.5 146
GF-20252 495*622*45 0.4411 3.2 Galvabized 3000 2.5 73
GF-20204 495*495*95 0.4411 6.8 Galvabized 2400 2.5 146
GF-20202 495*495*45 0.4411 2.7 Galvabized 2400 2.5 73
GF-16204 394*495*95 0.4411 5.4 Galvabized 1900 2.5 146
GF-16202 394*495*45 0.4411 2.1 Galvabized 1900 2.5 73
Model Exact Size GridBlock Density Material Loading
mm g/cm3 kg
GF-24242 595*595*95 0.4411 9.8
GF-24242 595*595*45 0.4411 3.9
GF-12244 289*595*95 0.4411 4.9
GF-12242 289*595*45 0.4411 1.9
GF-12124 289*289*95 0.4411 2.0
GF-12122 289*289*45 0.4411 1.0
GF-20254 495*622*95 0.4411 8.2
GF-20252 495*622*45 0.4411 3.2
GF-20204 495*495*95 0.4411 6.8
GF-20202 495*495*45 0.4411 2.7
GF-16204 394*495*95 0.4411 5.4
GF-16202 394*495*45 0.4411 2.1

*Contact for more details about filter.

Carbon Filter Used for Different Industries

Commercial Application

honeycomb activated carbon filter1

Carbon Filter for Machinery

honeycomb activated carbon oven

Carbon Filter for Oven

honeycomb activated carbon filter2

Air Filter for HVAC System

*Contact to know more applications

Good Performance Filter Need Good Adsorption Material

Our Certificate

Honeycomb Activated Carbon (Certificate of Achievement)1

Innovation is the key to success
We can help you to creat potential products

KNOW MORE
Select Suitable Product, save energy consumption

About HANYAN

  • Plant Area 100,000㎡
  • Produce 3,000m³ activated carbon per month
